Live Visualization

Interactive Installation

TIME: Unwinding the Spiral

A speculative visualization of the individual’s influence on the flow of time, as outlined in the spiral treatise. An afterimage of the viewer modulates between the present and a user-defined delay into the past; delay and modulation speed are adjustable on the controller. The work offers a sense of agency over time while asking how much control we truly have.

The controller case was modeled in Rhino 8 with Grasshopper and PLA 3D printed in white filament; a clear acrylic layer protects the laser-cut clock hands. The live visualization runs in Max 9 with Arduino code.

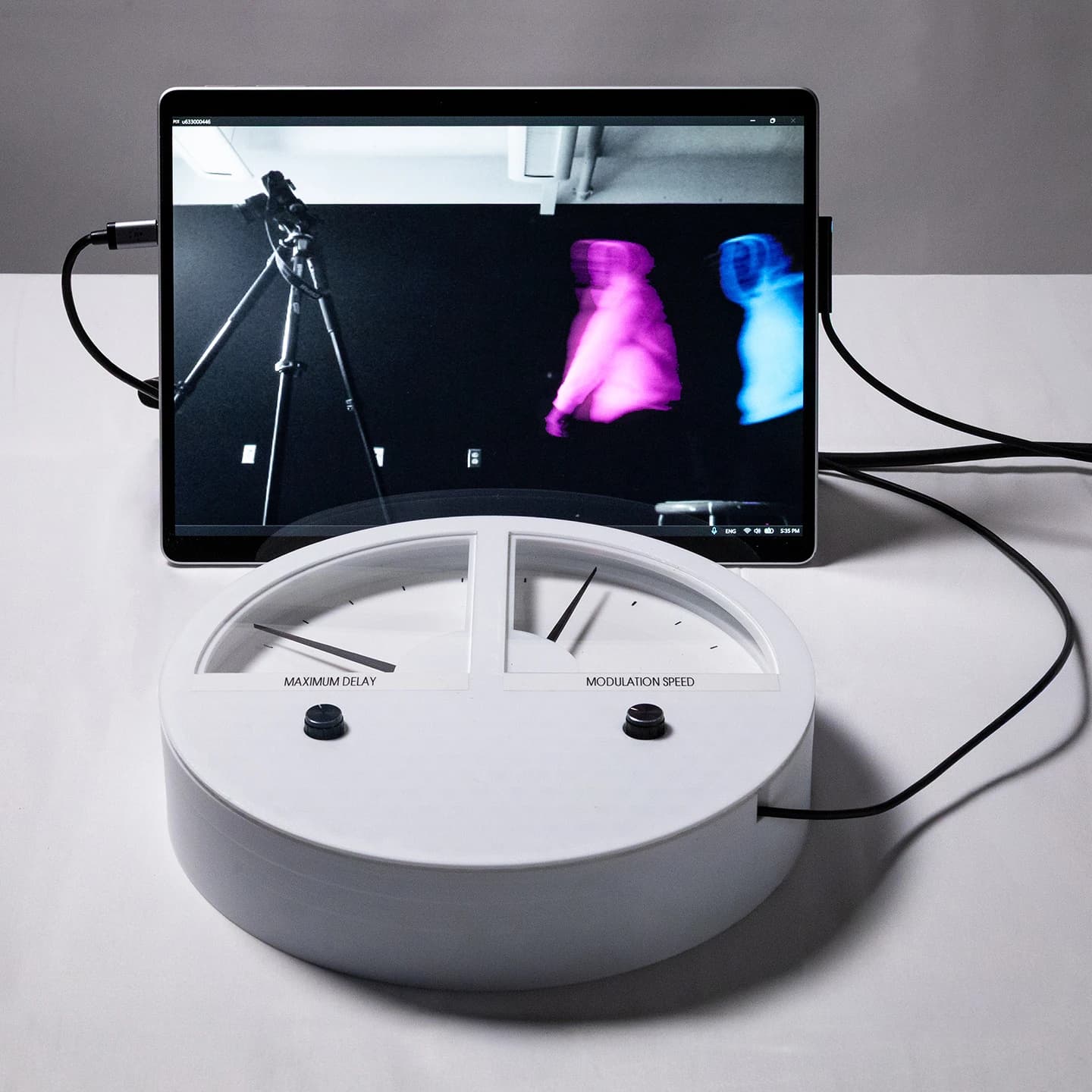

Full setup.

Video documentation of live visualization.

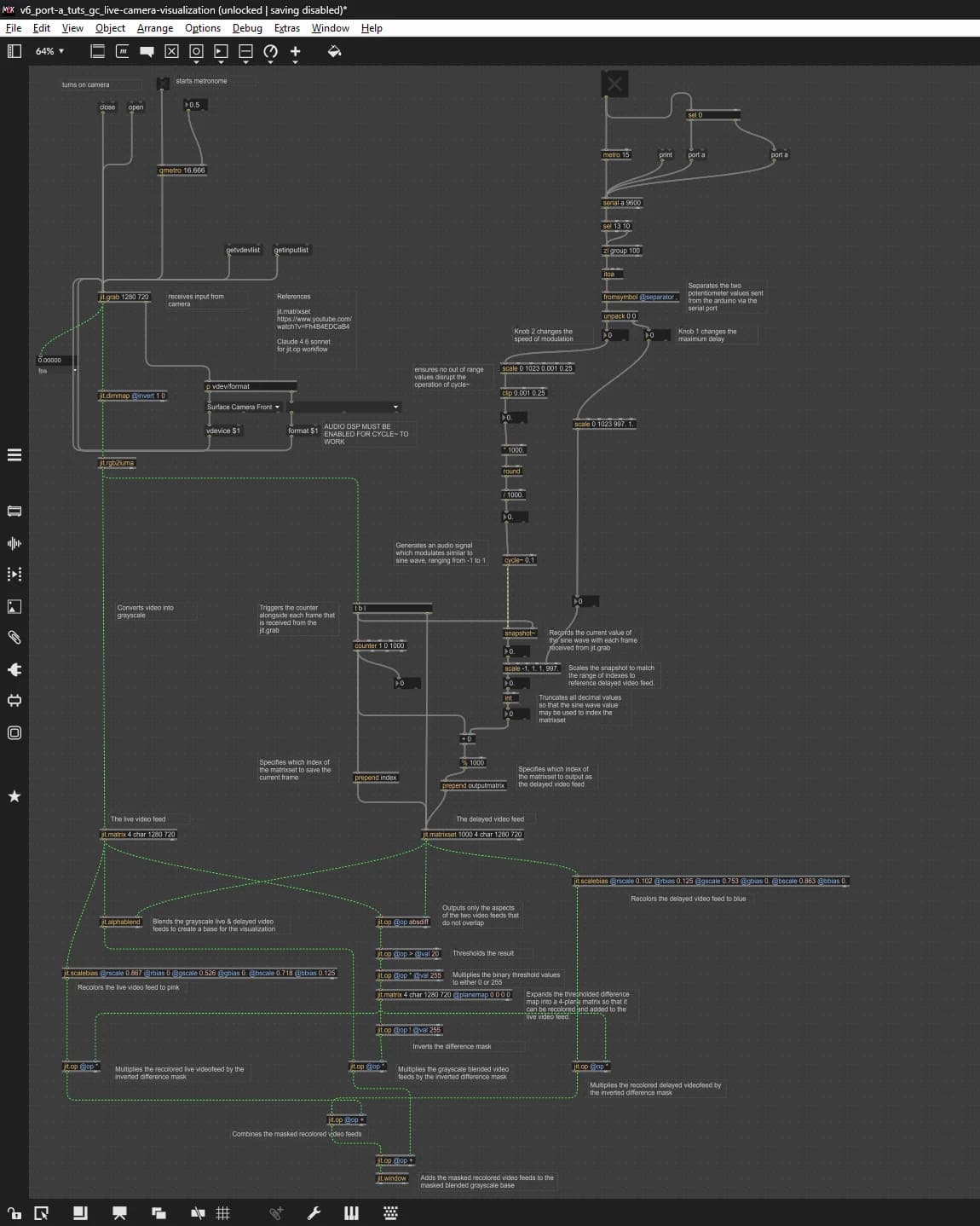

Max patch behind the abstracted live video feed.

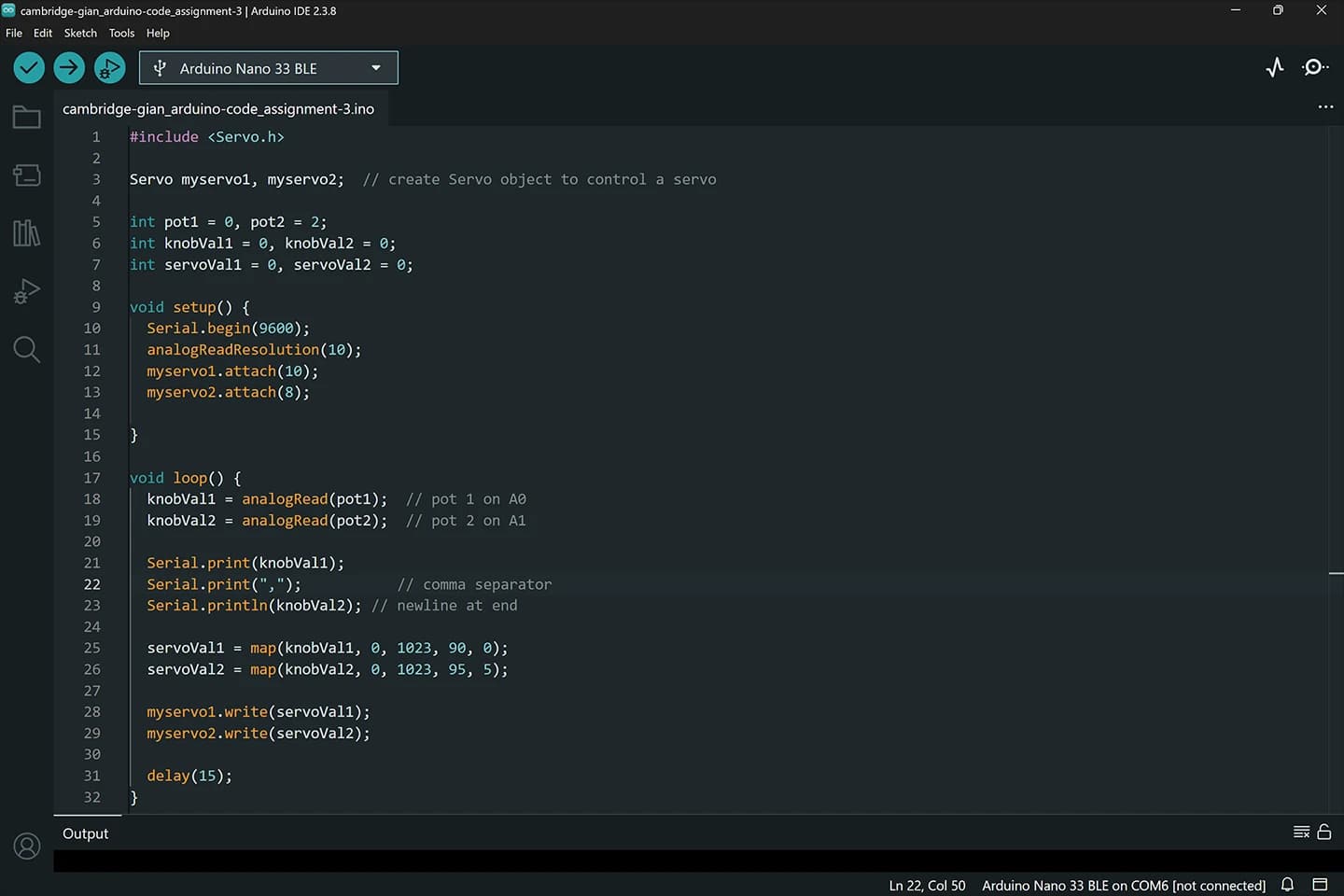

Arduino code that reads the controller and sends data to the Max patch.

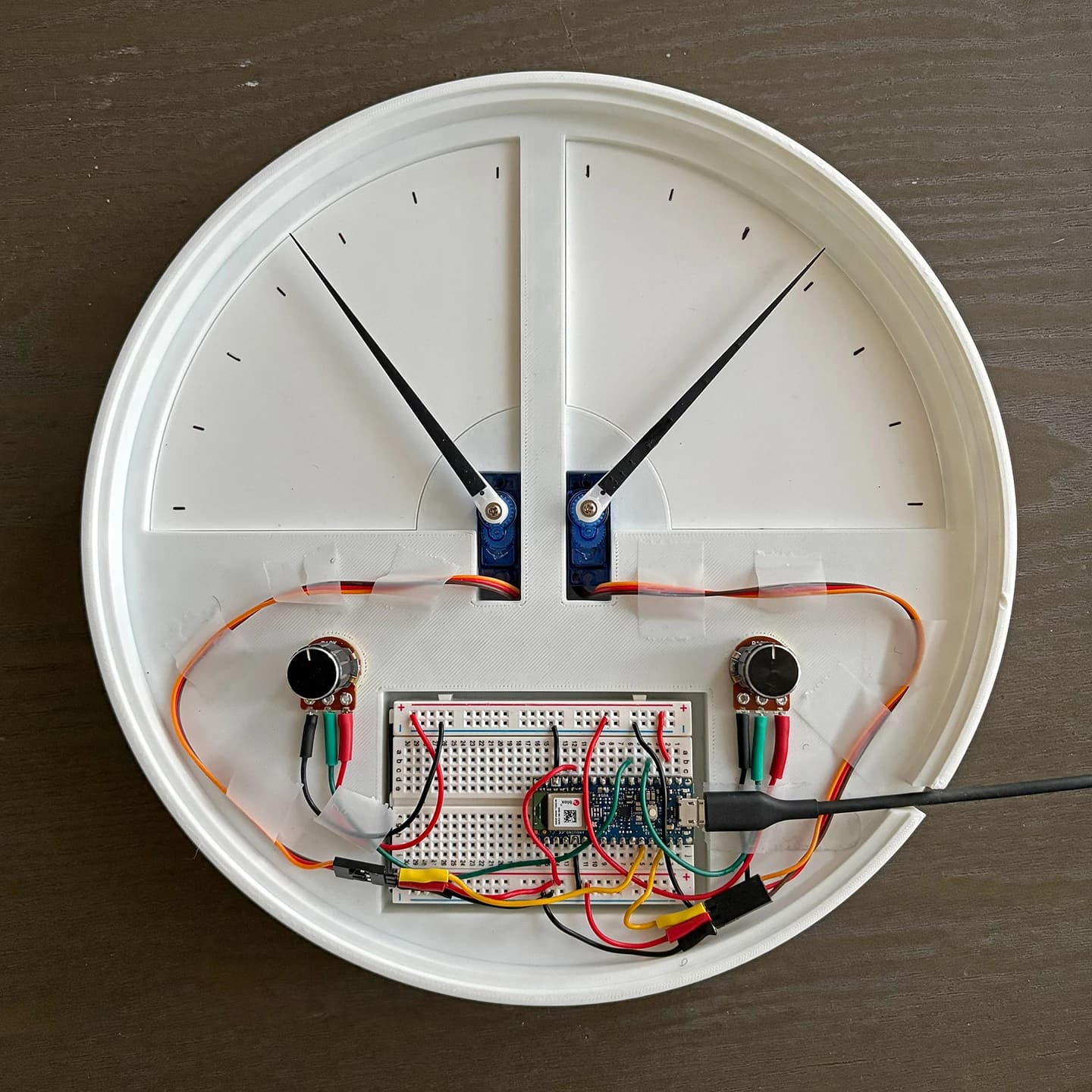

Interior of the controller case

Arduino Nano BLE Sense, two potentiometers, and two servos. Clock arms modelled in Rhino 8 with Grasshopper and 3D printed in black resin. Ticks laser-cut and engraved in white acrylic, then filled with black Sharpie.

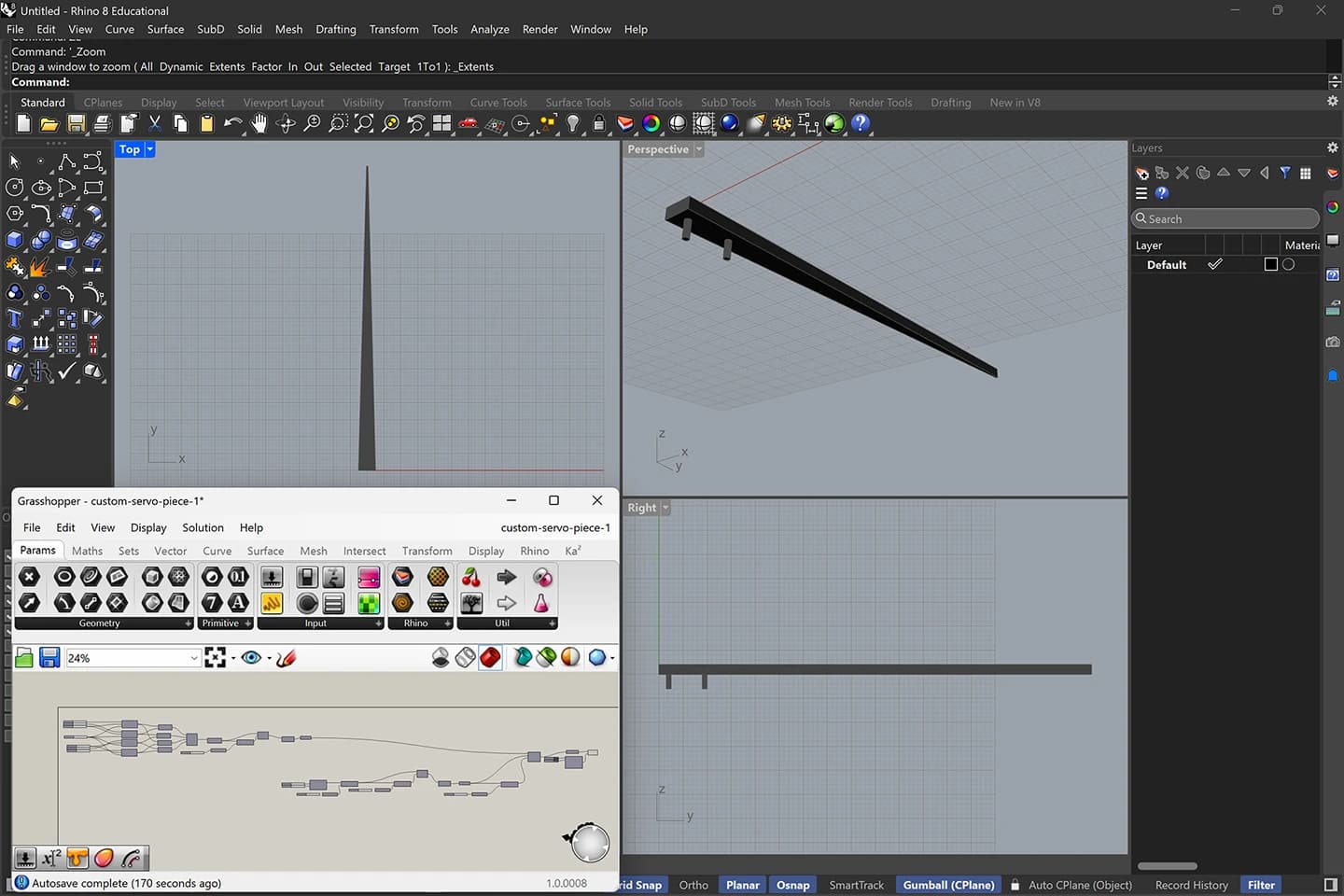

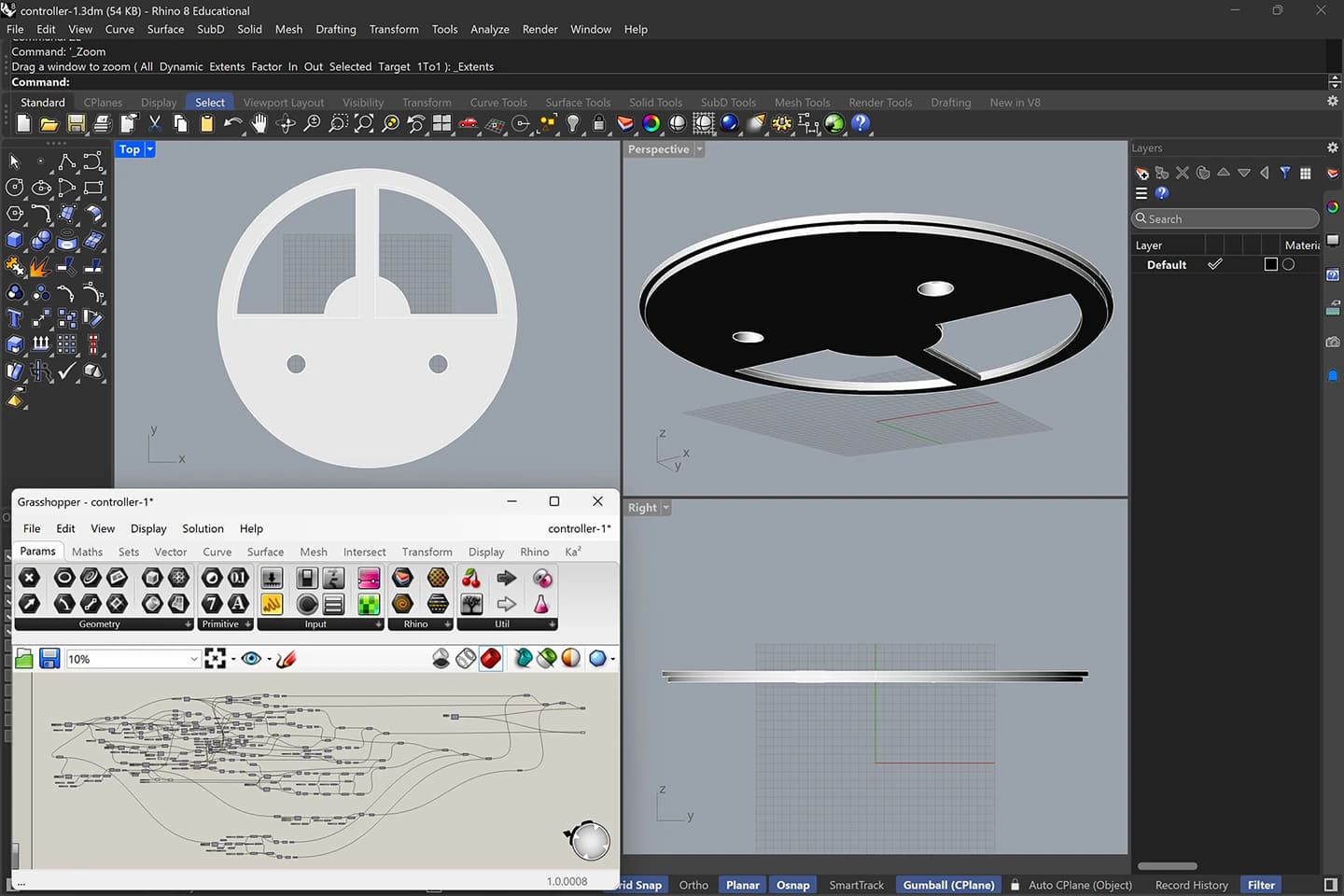

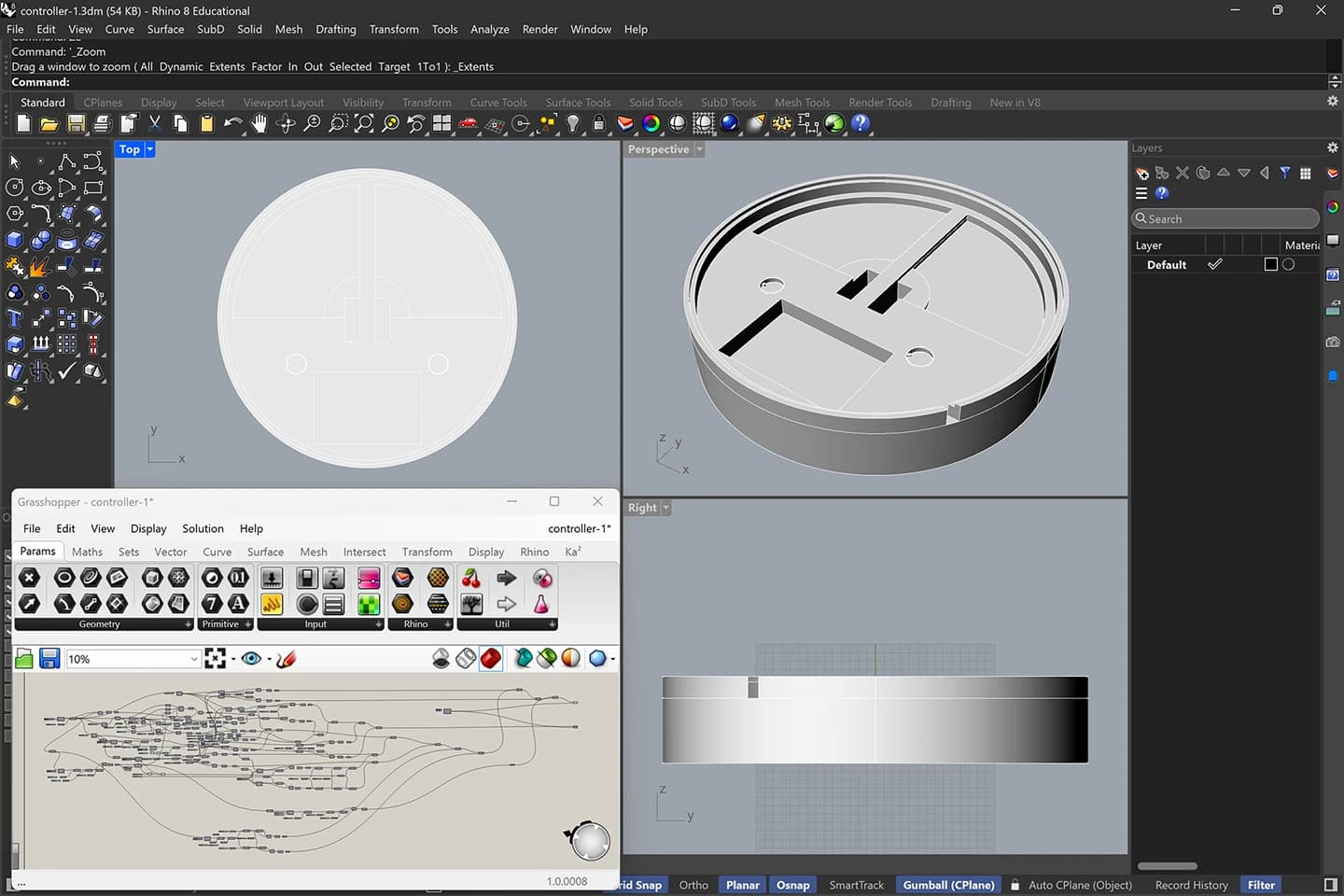

Screenshots of the Rhino 8 & Grasshopper files of the controller case.

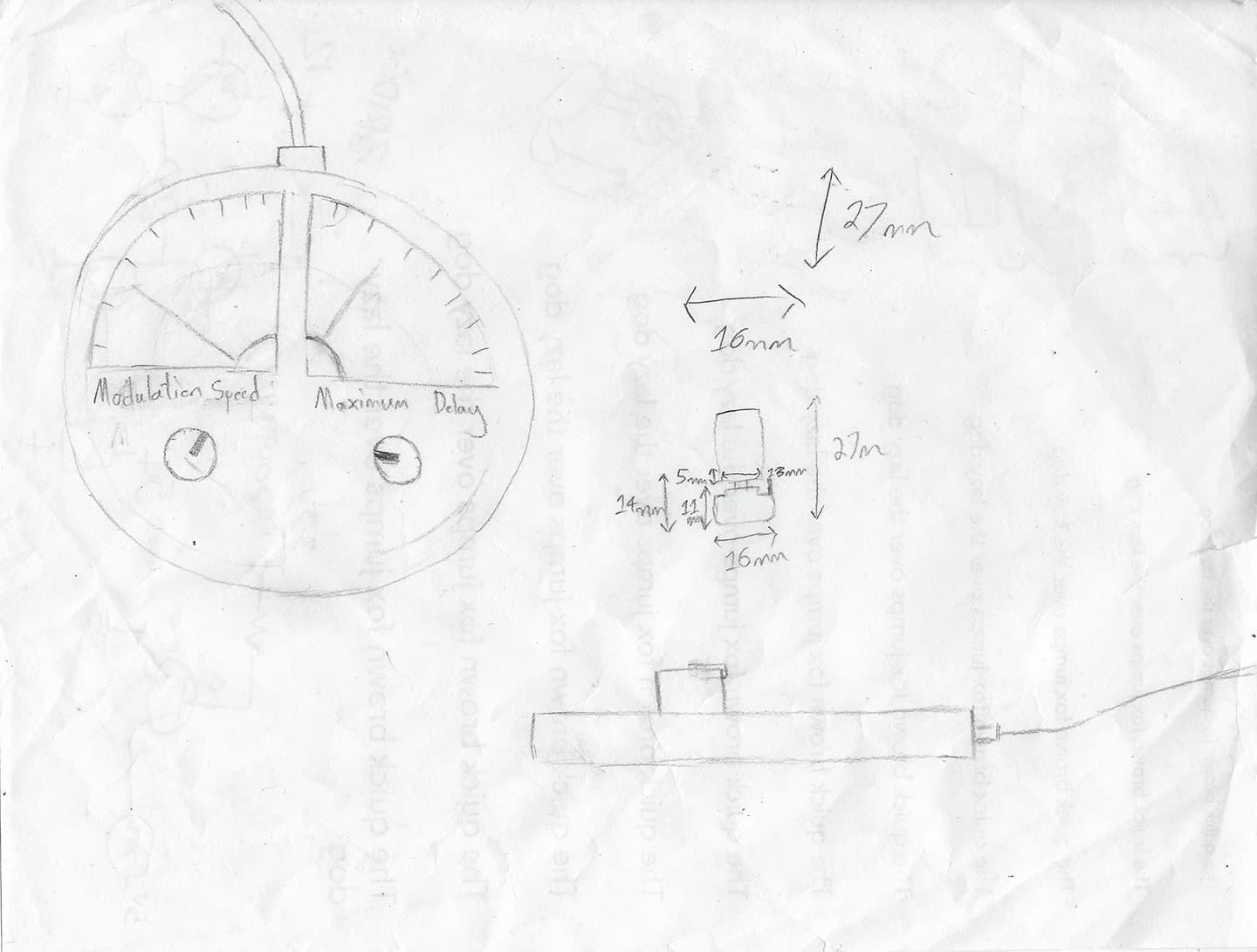

Original controller sketch; form inspired by clocks and frequency meters.

White controller with delay and modulation gauges in front of a screen showing pink and blue motion trails.
Gallery table with geometric spiral prints, an iMac, and a blue glass spiral sculpture.Tall plaque titled TIME: Unwinding the Spiral with text about time as a spiral.Light blue frosted glass hourglass vessel with a twisted diagonal swirl pattern.White spiral-bound book cover titled TIME: Unwinding the Spiral by Gian Cambridge.
